7 Clever DIY Garage Storage Projects

My garage used to be the place where good intentions went to die. Half-finished projects, mystery cords, paint cans from three owners ago, and a shovel that somehow always landed handle-down right where you walk.

The good news is you don't need a bigger garage. You need a storage plan that uses walls, ceiling, and rolling storage so the floor stays open for the stuff a garage is actually for.

Below are seven garage storage projects I have built (or rebuilt after learning the hard way) that squeeze real usable space out of the same square footage, without fancy materials or contractor-only tools.

Before you build: 30-minute reset

If you skip this step, you'll build great storage for the wrong stuff. Ask me how I know.

• Pick one wall to become your “tool and project” zone and one corner for bulk storage (totes, seasonal items).
• Measure your biggest items: mower, trash cans, snow blower, bikes, ladders. Write down heights and widths.
• Find the studs and mark them with painter’s tape. Most garage storage builds live or die by stud spacing.
• Decide what belongs overhead: light stuff only (camping gear, seasonal decor) unless you are building a properly fastened rack.

Code and safety note: Attached garages often require a fire separation (commonly fire-rated drywall on certain walls and ceilings), but details vary by home and jurisdiction. Avoid removing or compromising drywall, and seal penetrations appropriately. For heavy storage, hit framing members and use hardware rated for the job. When in doubt, go heavier on hardware, not lighter.

Load and hardware note: Every ceiling and wall is different. Follow the rated capacity of any kit or hardware you use, and anchor into joists or studs, not drywall. If your garage ceiling has unusual framing or you are unsure what you are fastening into, ask a qualified pro.

1) Overhead rack for seasonal bins

This is the single biggest square-footage unlock in most garages. The ceiling is usually empty, and large bins can work well overhead if they are not overloaded and the rack is built for the load.

Best for

Holiday bins, camping gear, lightweight coolers, bulky but light items.

Basic build idea

Build a simple platform frame from 2x4s, then add cross members and a deck surface (3/4-inch plywood or sturdy slats). Hang it from the ceiling joists with structural screws or lag screws and rated hardware. Keep it high enough to clear your garage door tracks and opener.

Also, do a quick reality check: some plastic totes sag over time and some lids pop if they are overstuffed. Keep the heaviest items on shelves, not overhead.

Materials and tools (typical)

• 2x4 lumber
• 3/4-inch plywood or 1x slats
• Structural screws or lag screws rated for overhead loads (match size and length to your rack design and joists)
• Rated angles, straps, or brackets if your design uses them
• Stud finder, drill/driver, level, socket adapter

Marcus tips

• Locate the garage door path first. Open the door and measure the highest point of the track and motor housing.
• Mount into joists, not drywall. Use a stud finder plus a small test hole if needed.
• Plan a conservative load. I treat overhead racks as “bulky and light” storage. Follow hardware and kit ratings, and do not exceed them.
• Leave clearance around lights and door hardware. You want bins to slide in without catching anything.
• Do not guess on fasteners. Use framing-rated fasteners, not drywall screws.

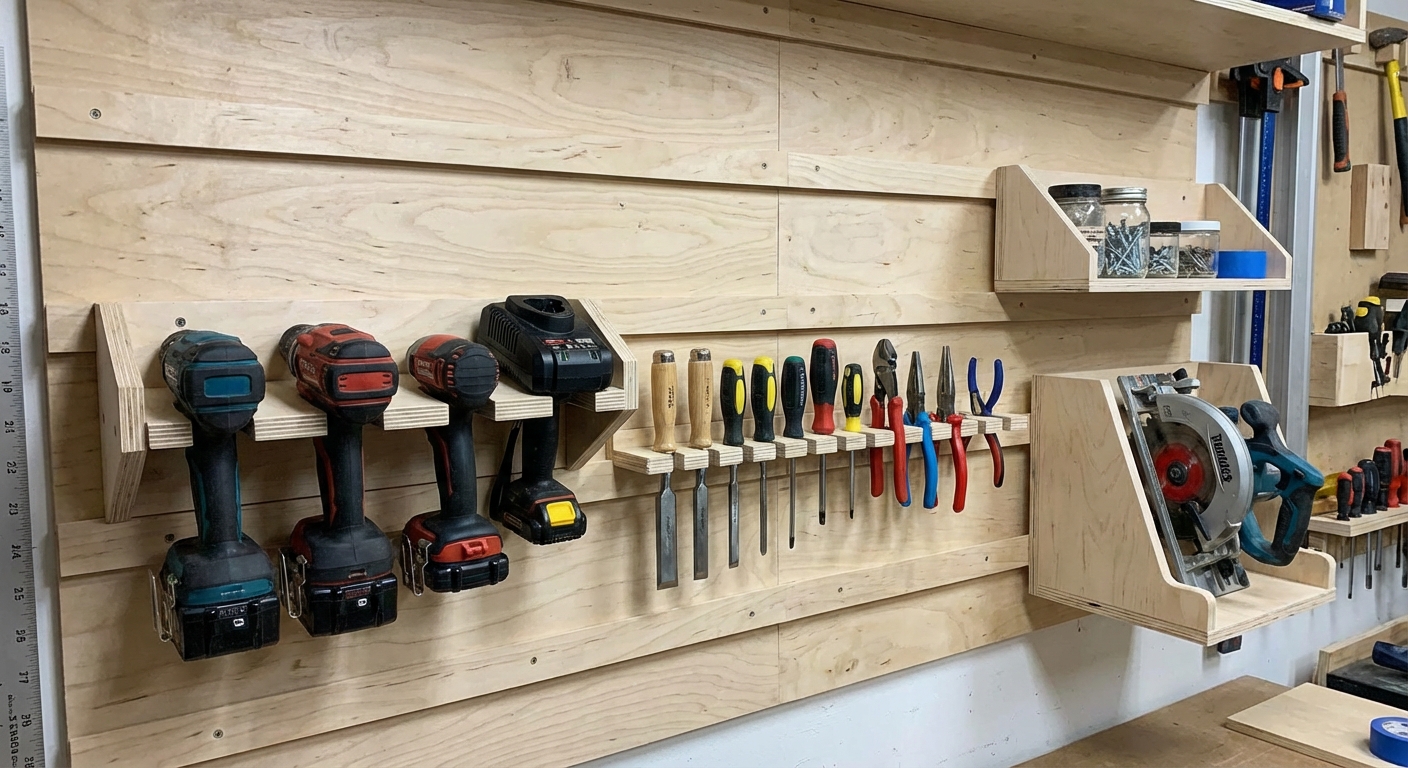

2) French cleat wall for tools

If I could keep only one storage method in my garage, it would be a French cleat wall. It is modular, forgiving, and easy to expand when you buy the next tool you swore you didn't need.

Best for

Hand tools, power tools, chargers, small parts, tape, clamps, and quick-grab stuff.

Basic build idea

Rip a sheet of plywood into long strips with a 45-degree bevel, then fasten cleats to the wall (bevel facing up and away). Build matching tool holders with the opposite bevel so they hook onto the wall cleat.

Most people do better with multiple horizontal cleats. A common spacing is every 6 to 12 inches vertically, depending on how tall your holders are.

Materials and tools (typical)

• 3/4-inch plywood
• 2 1/2-inch to 3-inch screws for studs (or structural screws)
• Table saw (or circular saw with a guide, plus extra care)
• Level, drill/driver

Marcus tips

• Hit studs, every time. Don't rely on anchors for a loaded cleat wall.
• Run cleats level and consistent. A small level error multiplies across the wall.
• Seal or paint the plywood. Raw plywood in a garage loves to grab grime.
• Build one junk drawer shelf. A shallow catch-all tray saves your sanity during active projects.

3) Wall shelves for totes and paint

Store-bought garage shelves work, but DIY wall shelving lets you use your exact wall length and ceiling height. Done right, it can be stronger than many big-box units and can cost less per linear foot, depending on lumber prices and how heavy you build it.

Best for

Storage bins, paint, automotive fluids, shop vac accessories, and bulky household overflow.

Basic build idea

Build a row of wall-mounted shelf brackets using 2x4 triangles (or vertical standards with horizontal arms), then add plywood shelf decks. Anchor every bracket into studs. For paint and chemicals, keep a dedicated “spill zone” shelf with a cheap plastic tray.

Materials and tools (typical)

• 2x4 lumber
• 1/2-inch or 3/4-inch plywood
• 2 1/2-inch to 3-inch screws into studs (or structural screws)
• Stud finder, level, drill/driver

Marcus tips

• Use stud spacing to set bracket spacing. In many garages studs are 16 inches on center, so brackets often land on each stud.
• Build around bin sizes. Standardize on one or two tote sizes so shelves stay efficient.
• Give yourself knuckle room. I aim for at least 16 inches of shelf depth for totes and 12 inches for smaller items.
• Seal the plywood edges. Paint, poly, or even a quick seal coat helps with garage humidity and grime.
• Don't store open paint overhead. Put paint on a lower shelf where drops are annoying, not disastrous.

4) Rolling workbench with storage

A rolling bench is the best of both worlds. Park it against the wall when you're storing stuff, roll it out when you're building, and keep the top clear enough to actually use.

Best for

Small garages, multi-use garages, anyone who needs both storage and workspace.

Basic build idea

Build a simple 2x4 base, add locking casters, then frame a lower shelf and a sturdy top (two layers of plywood or a solid-core top). Add cubbies for tool cases or a couple of deep drawers if you're feeling ambitious.

Materials and tools (typical)

• 2x4 lumber
• 3/4-inch plywood for top and shelf
• 4 locking casters rated for the load (3 to 5 inch wheels tend to roll better on garage floors)
• Screws, wood glue (optional), drill/driver

Marcus tips

• Buy better casters than you think you need. Cheap casters flatten and wobble on garage floors.
• Look for locks that stop wheel and swivel. It keeps the bench from drifting while you work.
• Keep the footprint narrow if you park cars inside. Measure your car door swing and leave a comfortable buffer.
• Add a power strip mount. One screwed to the side keeps cords from becoming spaghetti.

5) Vertical lumber and trim rack

Scrap wood multiplies in garages like rabbits. A vertical rack keeps boards sorted, upright, and off the floor so you can see what you have instead of buying duplicates.

Best for

2x lumber, trim, PVC, conduit, long offcuts, dowels.

Basic build idea

Mount a bottom rail to studs near the floor and a top rail higher on the wall. Add vertical dividers to create slots so boards stand up and stay separated. Keep one slot for long, skinny trim so it doesn't bow.

Materials and tools (typical)

• 2x4s and/or plywood for dividers
• Screws into studs
• Drill/driver, level

Marcus tips

• Don't block outlets. Lumber racks love to land right where you need power.
• Leave a quarantine slot. Toss questionable warped pieces there and decide later.
• Keep it away from water. If you get puddles near the garage door, raise the bottom rail a couple inches.

6) Slim cabinet for chemicals

Some garage items should not live on open shelves, especially if you have kids, pets, or a habit of knocking things over. A slim cabinet with doors keeps chemicals contained and visually calms the space.

Best for

Paint thinner, lubricants, cleaners, fertilizer, car wash supplies, rags, gloves.

Basic build idea

Build a shallow plywood box (10 to 12 inches deep is plenty for most bottles), add adjustable shelves, and hang it into studs with a French cleat or a sturdy ledger. Add simple plywood doors with basic hinges and a latch.

Materials and tools (typical)

• 1/2-inch or 3/4-inch plywood
• Hinges, magnetic catch or roller catch
• Screws, optional shelf pins for adjustability
• Drill/driver, circular saw or table saw

Marcus tips

• Add a lip on the shelves. A small 1x2 strip keeps bottles from tipping when you open the doors.
• Watch heat and freezing. Many paints, adhesives, and chemicals don't like freezing garages or extreme heat. Store sensitive items where they stay in their safe temperature range.
• Be smart about flammables. Many garages have ignition sources (water heaters, furnaces, freezers, tools). Store gasoline and other flammables in approved containers and follow local code. Large quantities may require special storage.
• Handle drying-oil rags safely. Rags with drying oils (like linseed oil and some stains and finishes) can self-heat and ignite. Lay them flat to dry outdoors or store in a metal can with a tight lid.
• Ventilation matters. Avoid storing strong solvents in a sealed cabinet right next to ignition sources. When in doubt, reduce quantity and follow the product label.

7) Ceiling bin hoist for bulky gear

If you have big, awkward items like a rooftop cargo box, a hard cooler, or seasonal sports gear, a hoist saves your back. You lift once, then it lives up high until you need it again.

Best for

Roof box, kayak accessories, large storage tote, stroller, folding chairs, big coolers.

Basic build idea

Use a rated pulley hoist system attached to ceiling joists. The platform can be a simple plywood tray with eye bolts, or you can lift an item using straps depending on shape. The key is anchoring into framing and staying within the rated load.

Materials and tools (typical)

• Rated hoist kit (pulleys, rope, hooks)
• Lag screws or structural screws into joists
• Straps or a plywood platform
• Drill/driver, ladder, helper recommended

Marcus tips

• Do a dry run with no load. Make sure the rope path is clean and the cleat is secure.
• Keep it over open floor. If anything ever slips, you want it away from the car.
• Label the rope end. I tie a simple knot pattern so I can tell which hoist is which in a hurry.

Quick reference measurements

• Stud spacing: Often 16 inches on center, sometimes 24. Measure and confirm.
• Shelf depth: 12 inches for small items, 16 to 24 inches for totes (based on your bins).
• Garage door clearance: Open the door fully and measure around tracks, torsion springs, opener rails, and lights before building overhead storage.

Pick the right projects

If you're staring at these ideas and thinking “I want all of it,” I get it. Here's the order I recommend for most garages:

• Step 1: Wall shelving for bins (gets the floor cleared fast).
• Step 2: French cleats for tools (keeps your work area functional).
• Step 3: Overhead rack for seasonal storage (biggest space gain for light bulky items).
• Step 4: Rolling bench (makes the garage usable for projects).
• Step 5: Specialty storage like lumber racks and hoists (solve the oddball problems).

Pick one project that solves your biggest daily annoyance and build that first. Momentum is half the battle.

My garage storage rules

• If it doesn't have a home, it becomes clutter. Build storage and assign zones.
• Store by frequency. Weekly items at chest height, seasonal items up high.
• Don't build around someday. Keep one small “maybe” bin, not a whole wall.
• Label bins on two sides. One label faces forward, one faces the aisle when the bin is sideways.

If you want, tell me what you store in your garage and whether you park inside. I can suggest the best two-project combo to start with and roughly how much wall space you'll need.
