DIY Paver Patio Installation

I still remember my first paver project. I thought the pavers were the “hard part,” so I rushed the base. A month later I had a wavy patio that held puddles like it was auditioning to be a birdbath. If you take nothing else from this guide, take this: the base is the job. The pavers are the fun part.

Below is the exact weekend workflow I use in my own backyard. It is beginner-friendly, budget-conscious, and built around doing the unsexy steps the right way so you only do them once.

Quick plan: what you are building

A durable paver patio is a stack of layers that each do a job:

• Compacted subgrade (your native soil, re-compacted after digging)
• Compacted gravel base (typically 4 to 6 in, sometimes more in cold climates)
• Leveling sand (a uniform ~1 in layer you screed flat)
• Pavers (your surface)
• Edge restraint (keeps the field from creeping outward)
• Joint sand (usually polymeric sand) to lock everything together

If you follow that system and keep your slope consistent, your patio will look “pro” because it will stay flat, tight, and drain water the way it should.

Tools and materials (with thrifty notes)

Tools

• Shovel and/or trenching shovel
• Wheelbarrow
• Hand tamper (small patios) or plate compactor (worth renting)
• 4 ft level or straight 2x4 with a level
• Tape measure
• String line and stakes
• Rubber mallet
• Broom
• Garden hose with a spray nozzle
• Speed square or framing square (helpful for keeping things square)
• Cutting tool: wet saw rental, angle grinder with diamond blade, or paver splitter
• PPE: work gloves, safety glasses, hearing protection, and a dust-rated respirator (especially for dry cutting)

Materials

• Pavers (buy 5% to 10% extra for cuts and mistakes)
• Crushed gravel base: often called road base, paver base, 3/4 in minus, crusher run, or dense graded aggregate
• Bedding sand: concrete sand (not play sand)
• Edge restraint (plastic or aluminum) plus spikes
• Polymeric sand (recommended for joints)
• Landscape fabric (optional, depends on soil and conditions)

Thrifty tip: If you are building under about 150 sq ft, bagged base and sand is convenient but pricey. For anything larger, call a local landscape supply yard and get bulk delivered. Delivery usually costs less than multiple trips and chiropractor bills.

Base material note: For a standard DIY patio, you typically want a dense graded base with fines that compacts hard. Clean 3/4 in stone by itself does not “lock” the same way unless you are building an open-graded drainage system.

Layout and sizing that saves headaches

Pick a pattern you can keep straight

• Running bond (brick pattern): fastest to lay, forgiving for beginners.
• Herringbone: one of the strongest interlocks, great for high traffic, slower to set.
• Basketweave: classic look, moderate effort.

Square matters more than you think

If your patio is out of square by even a little, the error grows as you lay rows. Use the 3-4-5 method to square your layout:

• Measure 3 ft along one side from a corner stake.
• Measure 4 ft along the adjacent side.
• The diagonal between those two marks should be 5 ft if the corner is square.

Plan your slope for drainage

You want water to leave the patio, not sit on it. Aim for 1/8 in to 1/4 in of fall per ft, sloping away from the house. For a 10 ft patio, that is about 1-1/4 in to 2-1/2 in of drop total.

My rule: If you are unsure, slope a little more rather than less, but do not go wild. Too much slope can feel weird underfoot and make chairs want to wander. Most patios feel great around 1/4 in per ft.

Good neighbor note: Make sure your new slope does not send runoff toward a foundation or into a neighbor’s yard. Also, watch for buried downspout lines and irrigation when you plan the footprint.

How deep to dig (the part everyone underestimates)

Your dig depth is based on your paver thickness plus base layers, plus a little room to fine-tune.

Typical backyard patio depths

• Pavers: often ~2-3/8 in (varies)
• Leveling sand: ~1 in (after screeding)
• Compacted gravel base: 4 in to 6 in (8 in to 12 in in freeze-thaw heavy areas, weak soil, or heavier loads)

Common target excavation: for many mild climates, plan roughly 8 in to 10+ in below your finished patio height (and more where winters are rough). Why the range? Because 2-3/8 in pavers + ~1 in sand + 4 in to 6 in base already adds up to about 7-3/8 in to 9-3/8 in, and real life needs a little wiggle room for compaction, grading, and making the finished surface sit slightly proud.

Pro check: Your final patio surface should end up slightly above surrounding soil so rain and mulch do not wash onto it. I aim for 1/2 in to 1 in proud of the yard, then feather the soil up around the outside.

Cold-climate note: You do not need to dig to frost depth like a footing, but freeze-thaw demands good drainage and enough base. When in doubt, ask a local stone yard what pros build under patios in your area.

Weekend timeline (realistic and repeatable)

• Friday night: layout, material staging, call 811 if needed
• Saturday: excavation, compact subgrade, build and compact base
• Sunday: screed sand, lay pavers, cut edges, install restraints, polymeric sand

If you are working alone, keep the size reasonable for your first run. Around 80 sq ft to 150 sq ft is a good “weekend and done” range depending on soil, access, and how many cuts you have.

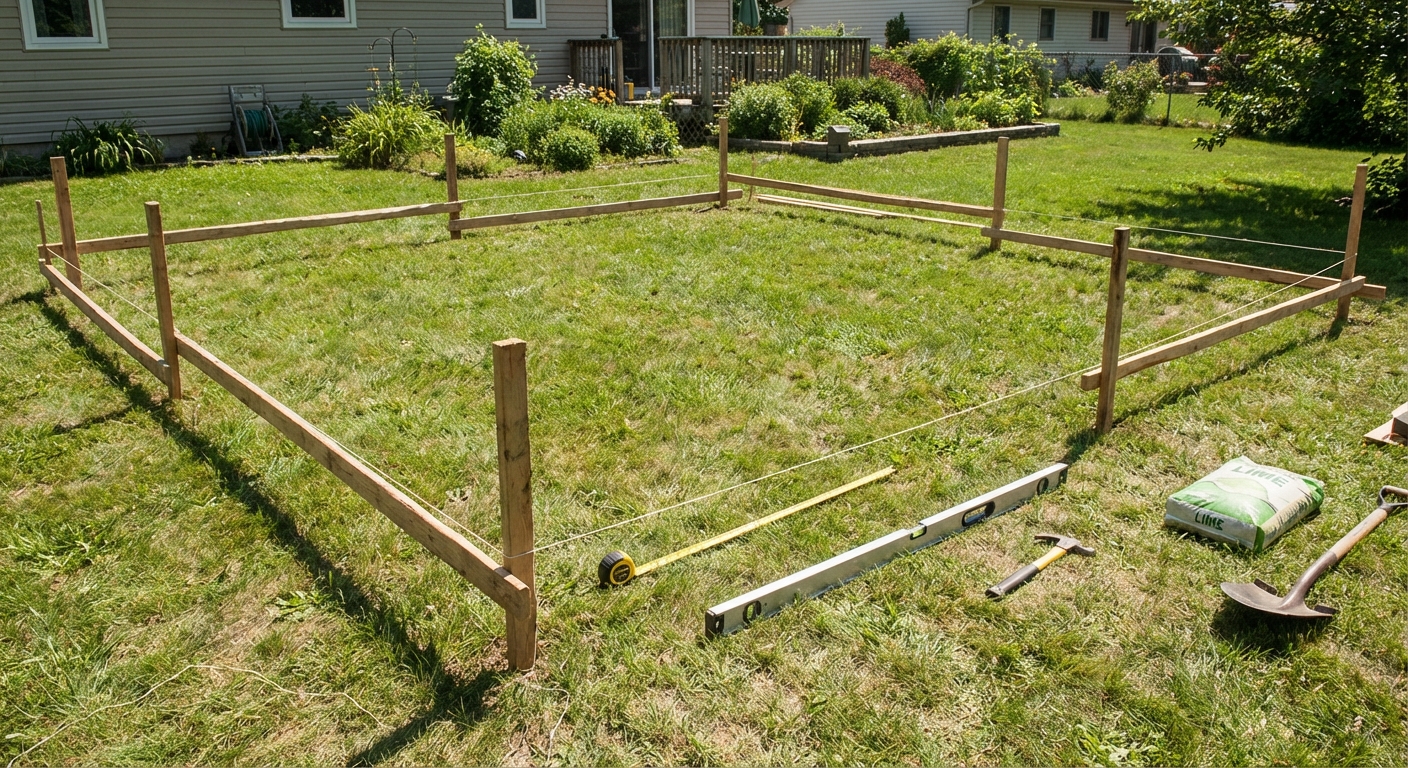

Step 1: Mark the patio and set strings

Set stakes outside your patio corners and run tight string lines to outline the shape. Then set your finished height using the strings as a reference. This becomes your “truth” for the whole build.

• Decide where the high side is (usually near the house, without trapping water).
• Set that string height at the stakes to match your desired finished patio elevation.
• Measure down at the other stakes to build in your slope (your strings should be level side-to-side where needed, and consistently sloped in the drainage direction).

Mistake I made early on: I used loose, saggy string. Pull it tight enough to “twang.” A sagging string gives you a sagging patio.

Step 2: Excavate and compact the subgrade

Remove sod and soil to your target depth. Dig a little deeper in high spots so you do not end up “fixing” the base thickness to compensate.

• Strip sod first and set it aside if you want to patch other areas.
• Excavate to depth, checking against your strings often.
• Rake roughly smooth.
• Compact the native soil with a plate compactor (best) or hand tamper.

Soil note: If your soil is soft, wet, or clay-heavy, compact in multiple passes and avoid working when it is saturated. Muddy subgrade is a recipe for settling.

Step 3: Build the gravel base in lifts

This is where the long-term flatness comes from. Add the base in layers called lifts, compacting each one.

How to do it

1. Lay the first lift of gravel base, about 2 in to 3 in thick.

2. Rake it roughly level, keeping the slope consistent.

3. Compact with 2 to 4 passes in different directions (overlap your passes so you do not miss strips).

4. Repeat until you reach your base thickness.

Grade it like a pro

Use a long straight board and level to check for dips. Your goal is a base that is flat and consistently sloped, not perfectly level.

Quality test: After compacting, walk on it. If your footprints show up, it needs more compaction or drier conditions.

Step 4: Screed 1 in of bedding sand

The bedding sand is not a place to “fix” a bad base. It is just a thin layer to nest the pavers evenly.

Screed method (simple and accurate)

1. Place two straight screed rails on the base, parallel to each other. The easiest hack is 1 in outer diameter pipe (for example, 1 in steel electrical conduit or 1 in PVC) so the sand naturally screeds to about 1 in thick.

2. Pour concrete sand between them.

3. Pull a straight 2x4 along the pipes to screed the sand flat.

4. Remove the pipes and fill the gaps with sand, smoothing gently.

Important: Once sand is screeded, do not walk on it. Lay pavers from one side while standing on the base or on already-laid pavers.

Also important: Do not compact the bedding sand. The pavers get seated during the final compaction step.

Step 5: Lay pavers and stay on line

Start at a straight edge or a 90-degree corner and work outward. Place pavers gently, then seat them with a rubber mallet. Keep joints consistent.

• Set pavers down, do not slide them across the sand.
• Check alignment every few rows with a string line or straightedge.
• Step back and eyeball it. Your eyes catch drift faster than a tape measure sometimes.

Pro habit: use a reference line

For running bond, I like to run a string reference line every few feet so the pattern does not slowly wander.

Small confession: My first patio “looked” straight up close, but from the kitchen window the rows had a gentle curve. Now I do the stand-back check every time.

Joint note: Many concrete pavers have built-in lugs that set joint spacing for you. If yours do not, follow the manufacturer’s recommended joint width. Polymeric sand also has minimum joint width and depth requirements, so check the bag before you commit to super-tight joints.

Step 6: Cut border pieces cleanly

Most patios need cuts along at least one edge. Take your time here because clean cuts are what make a DIY patio look professional.

• Mark cuts with a pencil and a square.
• Use a wet saw for the cleanest edge and least dust.
• If using an angle grinder, wear eye and hearing protection and a proper respirator.

Layout tip: Avoid skinny slivers at the edges. If you can, shift the whole pattern so your border cuts are at least a half paver wide. It looks better and holds up better.

Step 7: Install edge restraint

Edge restraint is what stops the patio from spreading over time. Without it, your joints open up and you will be chasing loose pavers.

• Install edging tight against the pavers.
• Spike it into the compacted base, not into loose soil.
• Follow manufacturer spacing for spikes, often every 8 in to 12 in and closer on curves.

DIY reality: Edge restraint feels like an annoying extra step. It is also the difference between “nice patio” and “why are my pavers migrating?”

Step 8: Compact and add polymeric sand

Compact the pavers

Run the plate compactor over the pavers to seat them into the bedding sand. If you are worried about scuffing, use a compactor pad or a piece of carpet remnant under the compactor (especially on textured or tumbled pavers).

Fill the joints

1. Make sure the pavers are totally dry before you add polymeric sand. Morning dew, wet saw spray, or a quick rinse can turn sand dust into a stuck-on haze that is not fun to remove.

2. Sweep polymeric sand over the surface until joints are full.

3. Compact again, then sweep more sand. Repeat until joints stay full.

4. Sweep the surface very clean. Leftover haze is one of the most common polymeric sand mistakes.

5. Mist with water according to the bag instructions, usually in a few light passes.

Weather note: Do not apply polymeric sand if rain is expected before it can set. Also, do not flood it with water. Gentle misting is the move.

Finishing touches that look built-in

• Backfill edges: Add soil against the outside of the edge restraint and tamp lightly.
• Feather the grade: Blend the patio into the yard so it looks intentional.
• Add a clean border: A soldier course or contrasting border paver can elevate the whole look.
• Seal (optional): Many pavers do fine unsealed. If you seal, wait until joints are fully cured per product instructions.

Common mistakes (and how to avoid them)

1) Not digging deep enough

If you are short on depth, do not “cheat” by making the base thinner. Dig deeper. The base is the foundation.

2) Using round pea gravel

Pea gravel does not lock together. Use angular crushed base material that compacts solid.

3) Skipping compaction between lifts

Compaction is not a final step. It is repeated through the build.

4) Trying to fix base problems with extra sand

Thick sand spots settle and create dips. Fix the base instead.

5) Forgetting slope

A perfectly level patio is a puddle patio. Build in consistent fall away from the house.

FAQ

Do I need landscape fabric under a paver patio?

Sometimes. Fabric can help separate base from soft soils and reduce mixing, but it is not a magic weed blocker. Weeds usually come from windblown seeds in joints. If your soil is stable and well-compacted, you can often skip fabric. If you have very silty soil or want extra insurance, use a proper geotextile under the base.

How thick should the gravel base be?

For many patios, 4 in to 6 in compacted is common. In freeze-thaw climates, weak soils, or heavier loads, you may need 8 in to 12 in. When in doubt, ask your local stone yard what pros use in your area.

Can I build this without a plate compactor?

You can on a small patio, but it is harder to get a truly solid base. Renting a plate compactor for a day is one of the best dollars you can spend on this project.

My simple checklist before you call it done

• Strings showed consistent slope during base and sand steps
• Base was compacted in lifts, not all at once
• Bedding sand stayed around ~1 in thick
• Pavers are tight with consistent joints
• Edge restraint is installed and spiked into the base
• Polymeric sand is fully set with no haze left behind
• Water runs off, not toward the house

If you knock out that list, you did not just build a patio. You built one that will still be flat and solid after a few winters and a lot of cookouts.
